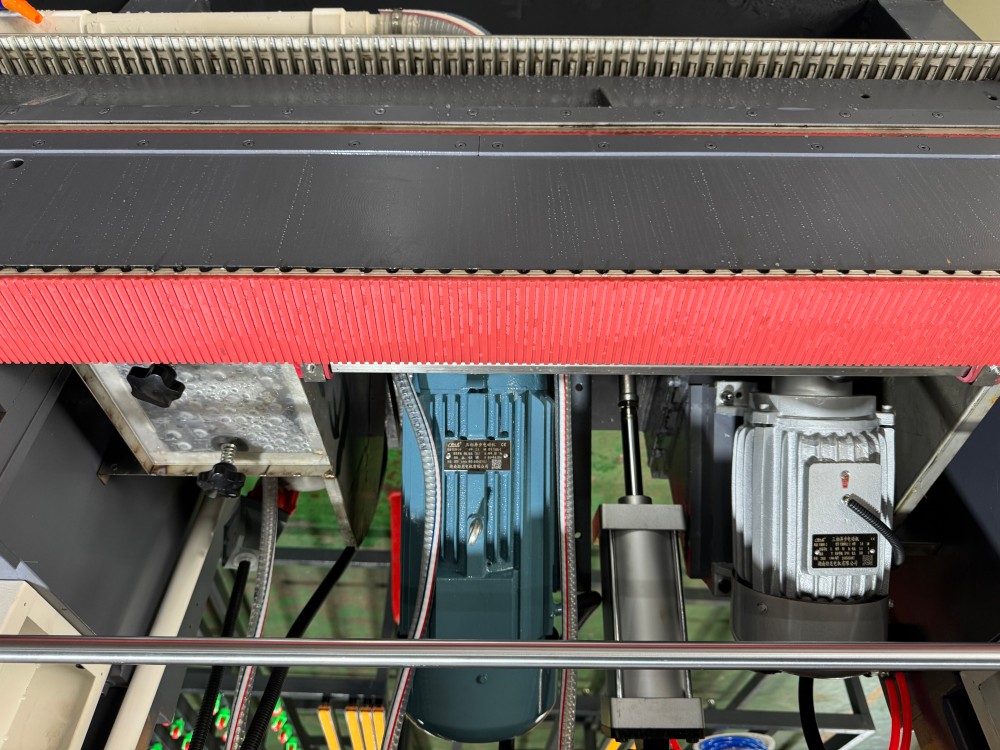

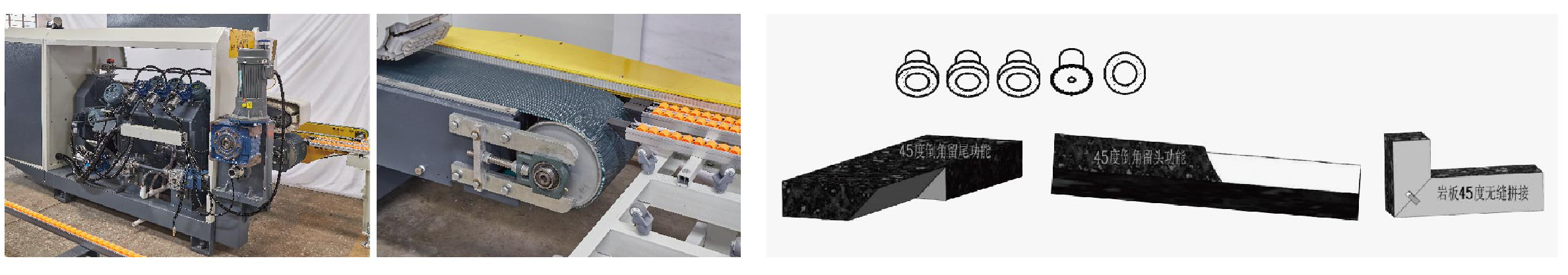

Conveying belt and Grinding motor detail drawing Grinding motor distribution&Machinable process drawing
Technical Parameter
Item
CS1121
CS113
CS131
No.1 trimming head motor power
3kw
No.2 45°backcut blade motor power
7.5kw
No.3,No.4, No.5,45°polishing head motor power
Conveyor belt power
Belt width
250mm
Processing speed
1-2.8m/min
Max product thickness
80mm
Min product width
30mm
Power
22.5
25.5
Weight
3.5t
3.8t
Installation site size
6*1.3*2.2m
6.8*1.5.2.5m
6.8*1.5*2.5m
