Characteristics | UM | Model 2-6-3-2-2 |

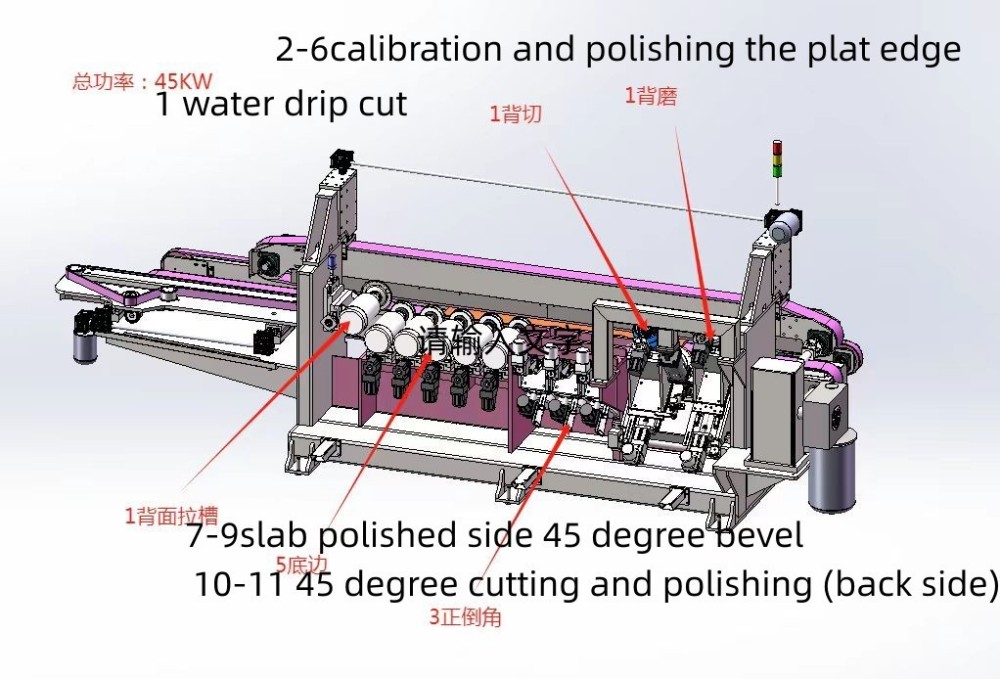

Head 1 motor (for slab back side water drip) | kw | 3 |
Head 2 motor (for slab edge calibration)) | kw | 5.5 |

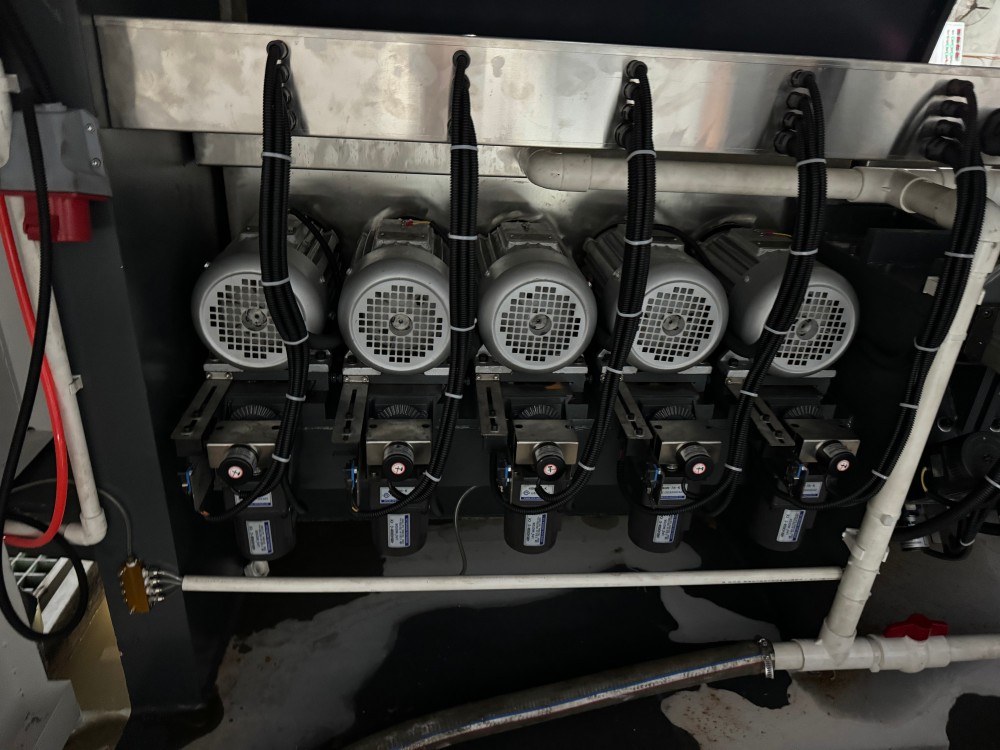

Head 3，4 &5motor (profiling with diamond wheel) | kw | 5.5*3 |
Head 6，7，8 & 9motor (profile polishing) | kw | 3*4 |
Head 10,11&12 (for plat polish) | kw | 3*4 |
Head 13 and 14motor (for slab polished side 45 degree small bevel polishing) | kw | 3*2 |
Head 15 and 16motor (for slab unpolished side 45 degree small bevel polishing) | kw | 3*2 |
Each head feeding motor | kw | 0.12*15 |
Belt motor | kw | 3 |
Total power | kw | 56.8kw |
Machine size(including roller) | M | 8.5*3.2*2.3 |
Machine working speed | M/min | 0.5-3 |
Reserved area for machine working | M | 10*4 |
Machine weight | kg | 5900 |
electric voltag and Hz | V/hz | 380/50 |
